Ball Seat Landing Collar
Product Overview

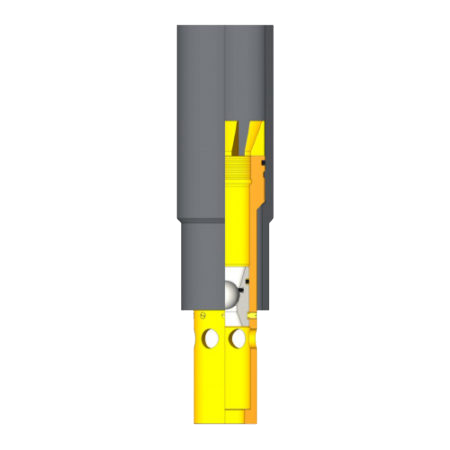

The Ball Seat Landing Collar is a critical component in liner hanger assemblies, installed near the bottom of the liner string. It enables the landing of a ball to hydraulically set uphole tools during liner deployment and provides a secure profile for latching the liner wiper plug during primary cementing. The integrated clutch design prevents plug rotation during drill-out, ensuring a clean and efficient operation.
Key Features
- Field-adjustable ball seat pressure without disassembly (up to 5,000 psi)
- Contained ball and seat after shearing – no debris enters the wellbore
- Aluminum internals are fully PDC drillable
- Integrated wiper plug latch profile with anti-rotation clutch
- Maintains full casing ID after drill-out
Applications & Completion Scenarios
- Used in hydraulic-set liner hanger systems
- Effective in primary cementing operations requiring plug latching and anti-rotation control
- Suitable for wells where clean drill-out and debris control are critical
Advantages
- Field-adjustable shear system reduces redress time
- Contained debris system enhances reliability of float equipment
- High-strength housing matches liner metallurgy for structural integrity
Compatibility
Compatible with industry-standard hydraulic liner hanger systems, liner wiper plugs, and float equipment.
Certifications & Quality Assurance
Manufactured from premium-grade materials and tested to meet or exceed API and ISO performance standards for liner equipment.
Technical Specifications
Operational Parameters
| Parameter | Specification |
|---|---|
| Ball Seat Pressure Adjustment | Up to 5,000 psi |
| Pressure Rating (Above/Below) | 5,000 psi |
| Shear Pin Value | 448–495 psi ±5% (per pin) |
| Number of Shear Pins | 10 |
| After Drill-Out | Full Bore Restored |
Mechanical Specifications
| Liner Size | OD | ID | Ball Size | Liner Wiper Seal Bore ID | Material | Threads |
|---|---|---|---|---|---|---|
| 4 1/2" | 5.00" | 1.25" | 1.50" | 2.528" | P110 | As Required |
| 5" | 5.60" | 1.25" | 1.50" | 2.528" | P110 | As Required |
| 7" | 7.85" | 1.60" | 1.75" | 3.058" | P110 | As Required |
Survivability / Limits
| Property | Value |
|---|---|
| Tensile Strength | As per liner rating |
| Burst / Collapse | Meets or exceeds liner rating |
| Ball Material Options | Brass or Phenolic (1.9 SG) |
