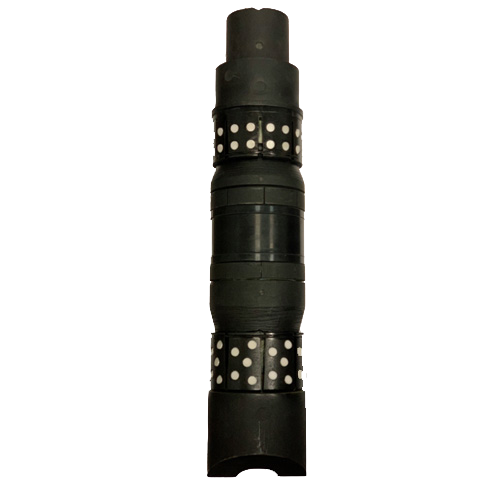

Recedó™ Hurricane™ Composite Frac Plug
Compact Full Composite Frac Plug
Product Overview
The Hurricane™ Composite Frac Plug is a compact full-composite isolation device engineered for plug-and-perf operations requiring fast millout, predictable performance, and efficient stage isolation. Its short-length design, low debris generation, and proven pressure integrity make it a reliable, cost-effective solution across U.S. shale basins.
Key Features
- Full composite construction for clean, rapid millout (6–8 minutes)
- Short overall length reduces run time and completion cycle duration
- Rated to 10,000 psi and proven in high-rate pump environments
- Ceramic-button slip system ensures secure anchoring and minimal casing damage
- Compatible with dissolvable frac balls and multiple ball-drop configurations
Applications & Completion Scenarios
- Plug-and-perf operations in unconventional shale wells
- Multi-stage hydraulic fracturing requiring predictable isolation
- High-pump-rate environments demanding fast, low-debris millout
- Operators prioritizing cost-effective, field-proven composite plugs
Advantages
- Shortest-length design in its class improves run efficiency
- Full composite body minimizes debris and reduces risk of casing damage
- Slip cone prevents plug rotation during mill-up
- Field-selectable ball configuration increases operational flexibility
- Inventory available for immediate shipment across U.S. basins
Compatibility
- Suitable for all standard plug-and-perf BHAs
- Compatible with dissolvable and standard frac balls
- Available in multiple sizes for 4 1/2" and 5 1/2" casing strings
- Supports both ball-drop and ball-in-place completions
Certifications & Quality Assurance (optional upon data availability)
Manufactured under controlled QA/QC processes aligned with industry standards (API Q1 / ISO equivalents if applicable).
Technical Specifications
Operational Parameters
| Parameter | Value |
|---|---|
| Pressure Rating | 10,000 psi |
| Temperature Rating | 40–350°F (350°F version available) |
| Pumping Environment | High-rate stimulation |
| Ball Drop Options | Ball drop or ball-in-place |
| Millout Time | 6–8 min |
Mechanical Specifications
| Plug Size | Casing Weight (PPF) | Plug OD | Plug ID | Plug Length | Casing ID Range |
|---|---|---|---|---|---|
| 4 1/2" | 11–13.5# | 3.660" | 1.000" | 22.75" | 3.920"–4.000" |
| 5 1/2" | 17–23# | 4.375" | 1.445" | 21" | 4.670"–4.892" |
| 5 1/2" | 20–23# | 4.250" | 1.445" | 21" | 4.670"–4.778" |
Survivability / Limits
| Parameter | Value |
|---|---|
| Temperature Limit | 300°F standard / 350°F optional |
| Slip Type | Full Composite Ceramic Button |
| Drawdown Pressure Resistance | High (flowback & screenout recovery) |
| Structural Integrity | No shear/dowel pins; composite body |
