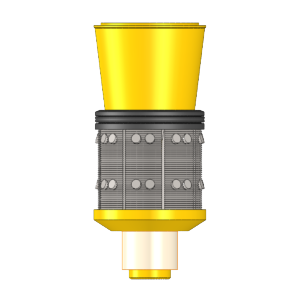

Recedó Lightning™ Dissolvable Frac Plug
Product Overview
The Recedó Lightning™ Dissolvable Frac Plug is a high-performance, metal-to-metal sealing plug engineered for reliable stage isolation up to 10,000 psi. Built on the proven Recedó™ platform, it delivers rapid degradation, minimal debris, and predictable dissolution tailored to the well’s chemistry, temperature, and casing profile.
Key Features
- Metal-to-metal sealing with minimal elastomer for reduced residue
- Customizable dissolution rates—from hours to days
- High-strength anchoring system with reduced debris generation
- Compatible with clean and dirty completion fluids
- Optional ball-in-place or drop-ball configurations
Applications & Drilling Scenarios
- Ideal for plug-and-perf completions requiring fast transition to production
- Suitable for cemented liner operations in high deviation wells
- Extended-reach horizontals requiring predictable, low-debris dissolution
Advantages
- Reduced anchoring button count lowers debris and preserves casing ID
- Tailored metallurgy enables predictable dissolution in any well chemistry
- Maintains high pressure integrity even during low-pressure tests
- Minimal elastomer volume ensures cleaner wellbores and reduced intervention risk
Compatibility
- Fully compatible with standard wireline setting systems (Baker E4 #10/#20)
- Operational in most oil- and water-based frac fluid systems
- Anchors securely across standard and high-strength casing grades
Certifications and Quality Assurance
Manufactured under stringent QA/QC processes with full traceability of dissolvable metallurgical components.
Technical Specifications
Operational Parameters
| Parameter | Specification |
|---|---|
| Pressure Rating | 10,000 psi (standard), up to 12,000 psi in select sizes |
| Trip-In Speed | Up to 800 ft/min |
| Temperature Range | 70–325°F (21–162°C) |
| Setting Method | Compatible with standard wireline tools (e.g., Baker E4 #10/#20) |
| Removal Method | Full dissolution; optional drill-out with jointed tubing or CT |
Mechanical Specifications
| Parameter | Value |
|---|---|
| Sealing Design | Metal-to-metal + minimal elastomer backup |
| Casing Engagement | Low-penetration anchoring buttons (reduced casing wear) |
| Dissolution Control | Chemistry- and temperature-tailored alloys |
| Deployment | Plug-and-perf, cemented liners, extended-reach horizontals |
Survivability / Limits
| Parameter | Value |
|---|---|
| Max Pressure | 10,000–12,000 psi (size-dependent) |
| Casing Grades | Compatible with most grades including Q-125 |
| Debris Volume | Significantly reduced vs. conventional plugs |
| Dissolution Window | Hours to multiple days depending on alloy selection |
