Neutrino™ MWD Platform

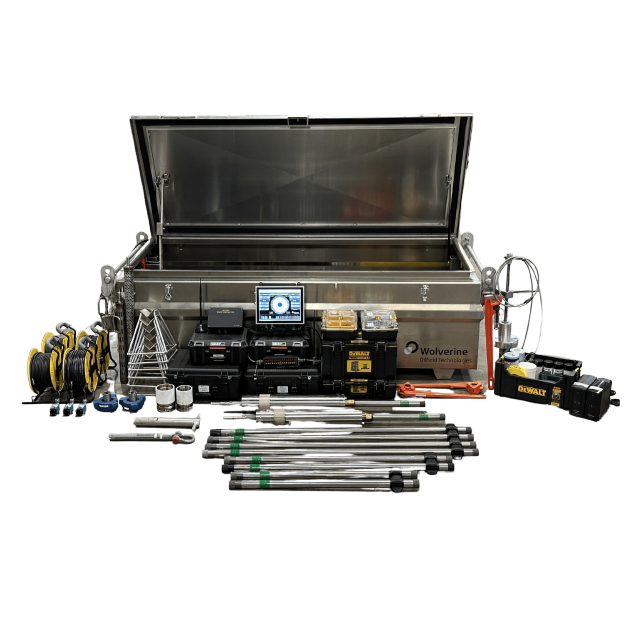

Advanced Measurement While Drilling (MWD) Kit Box Solutions
Product Overview
The Neutrino™ MWD Platform is a fully integrated downhole measurement system engineered for directional drilling reliability, optimized data delivery, and operational efficiency. Designed and built in-house, it features high-performance Mud Pulse Telemetry, a top-mount pulser, advanced directional sensors, and bulk gamma detection—all backed by 24/7 technical support and integrated Neutrino™ software ecosystem.
Key Features
- High-speed Neutrino™ Top Mount Pulser
- Neutrino™ Mud Pulse Telemetry (MPT) for robust real-time data flow
- Industry-trusted 180°C Directional and Gamma modules
- Fully compatible Neutrino™ database, logging, and maintenance software
- Engineered for durability: 175°C operational temp, 1000g shock
Advantages
- High-speed data delivery via mud pulse telemetry
- Modular design supports field-level service and replacement
- Superior ruggedness and thermal tolerance for extreme wells
- Backed by Wolverine’s global technical support and training
Software Ecosystem
- Neutrino™ MPT – mud pulse telemetry control
- Neutrino™ DB – database and log management
- Neutrino™ OM – operations & maintenance suite
Training & Support
Providing global 24/7/365 support with expert engineers in:
- Software, mechanical, and electrical engineering
- MWD tool design, integration, and operations
- Technical documentation and lab support
Configuration & Components
Technical Specifications
System Components & Descriptions
| Component | Description |
|---|---|
| Neutrino™ MPT | High-speed Mud Pulse Telemetry System |
| Neutrino™ Top Mount Pulser | Rigid, high-speed pulser positioned near the bit |
| Directional Module | Precision azimuth, inclination, and toolface data |
| Bulk Gamma Module | Formation gamma ray detection up to 180°C |
| Neutrino™ DB & OM Software | Database + operations management suite |
Directional Module Specifications
| Parameter | Value |
|---|---|
| Length | 29.2 in |
| Operating Temperature | 175°C |
| Survival Temperature | 185°C |
| Power Consumption | 1 W |
| Azimuth Accuracy | ±1° @ >5° inclination |
| Inclination Accuracy | ±0.1° |
| High-Side Toolface | ±0.1° @ >5° inclination |
| Random Vibration | 20g RMS (20–500 Hz) |
| Shock | 1000g (0.5 ms, half-sine) |
Gamma Module Specifications
| Parameter | Value |
|---|---|
| Length | 11.6 in |
| Operating Temperature | 350°F |
| Survival Temperature | 400°F (reduced accuracy) |
| Random Vibration | 30g (20g RMS) |
| Shock | 1000g (0.5 ms, half-sine) |
| Sensitivity | 1.14 CPS/API |
| Accuracy | ±5% up to 300°F, ±10% up to 350°F |
